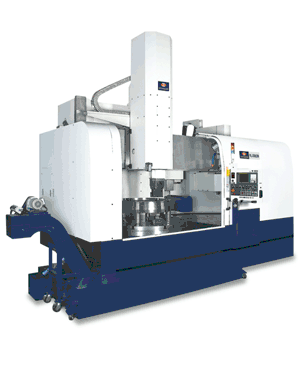

Honor Seiki VL-200

Capacity

Max. swing diameter: 2500mm
Max. turning diameter: 2500mm
Distance from ram to table: 825-1825mm (VL-200C), 860-1860 (VL-200CM)
Max. turning height: 1600mm
Max. work piece weight: 12000kg

Spindle

Table diameter: 2000mm
Range of table speed: 5-200 rpm
Change gear speed: 2-step
Tool live spindle speed: 50-2250 rpm (VL-200CM)

ATC

ATC (Automatic Tool Change): 12/16 (VL-200C), 16 (VL-200CM)
Tool size: 25mm, 32mm, 40mm
Cross-section of ram: 250x250mm

Feed

Rapid rate (X-Axis): 10m/min.
Rapid rate (Z-Axis): 10m/min.
Horizontal travel (X-Axis): -300+1450mm
Vertical travel (Z-Axis): 1200mm
Cutting feed rate: 0.001-500mm/min.
Feed override: 0-150%
Cross-rail travel: 1000mm (250×4 step)

CNC Controller System

Fanuc 0i-T

Siemens

802D

Motor

Spindle motor (Cont. /30min.): AC60/75
Feed motor (X/Z axis): 5.5/5.5kw
Live tool motor: AC11/15kw (VL-200CM)

Power Requirement

90kva (VL-200C), 105kva (VL-200CM)

Machine Size

Floor Space (LxW): 7600x5500mm
Max. height: 6300mm (VL-200C), 6900mm (VL-200CM)
Net weight: 47000kg (VL-200C), 49000kg (VL-200CM)
